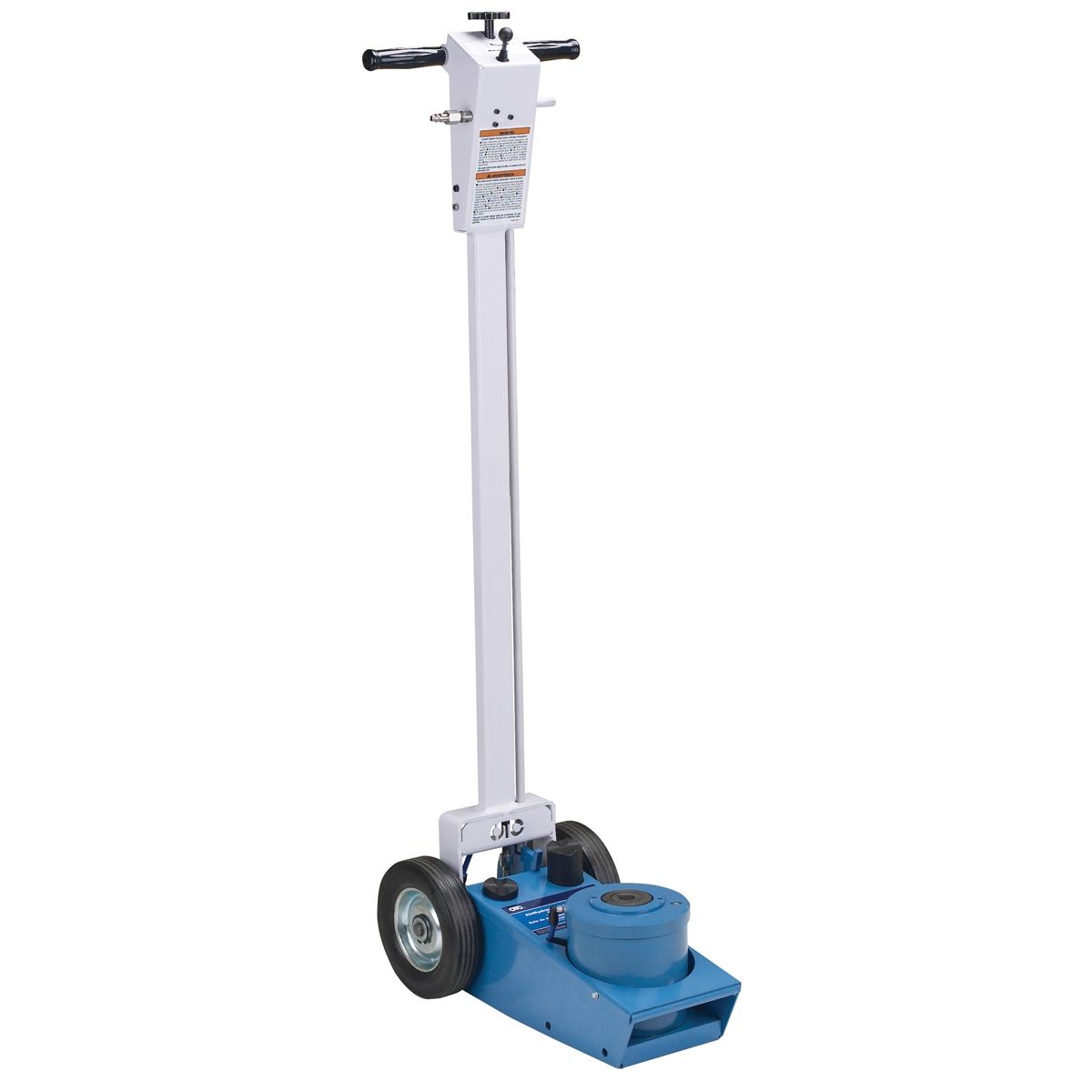

Under Axle Jack 27.5 Ton

  • Features class-leading 27.5 ton capacity
  • Robust design with completely sealed piston - reduces likelihood of contamination of hydraulic fluid.
  • Ergonomic handle design provides convenient location of air valve and release knob. Incorporates both hand release knob and venturi vacuum system for power return with no load.
  • Four position handle includes 'stow away' position for convenient storage.
  • Maximum height of 21-3/8 inches when used with screw extended and large adapter.
  • Complies with latest ASME/PALD standards.
Specifications:
  • Minimum retracted height (with saddle): 8-1/4"
  • Maximum lifting height (with saddle only): 13-1/8"
  • Maximum lifting height (with screw extended & large adapter): 21-3/8"
  • Stroke: 4-15/16"
  • Large adapter length: 3-15/16"
  • Screw extended length: 4-3/4"
  • Handle length: 48-3/4"
  • PSI range: 90 to 175 psi.
$85 standard freight fee. Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
  • *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
  • *For lift-gate service, add $135.00.

OTC 5092 27.5-Ton Under Axle Jack

$2,079.70

This product has been discontinued

This product was added to our catalog on Wednesday 21 December, 2011.
