- Welded frame for added strength
- Protective guard, combination 'V' block and pressing adapter set included
- Press head moves from side to side for added pressing flexibility
- Liquid filled gauge accurately shows operator pressing force being applied
- Air pressure: 110 - 120 PSI
- HD cable winch for raising and lowering press bed
- Includes multiple use pin and press adapter set (not shown)
Specifications:
- Ram Stroke: 7-3/4"
- Hydraulic system pressure: 9053 psi
- Air Pressure: 110 to 120 psi
- Overall Width: 54"
- Overall Height: 75"
- Bed Depth: 10.125"
- Bed Width: 28-3/4"
- Throat Depth: 7-1/4"
- Throat Width: 16-3/4"
- Bed Positions: 8
- Hole Distance (ctr to ctr): 5-1/2"
- Net Weight: 803 lbs. (364.2 kgs)
Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
- *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
- *For lift-gate service, add $135.00.
Manufacturer drop ship freight ppd

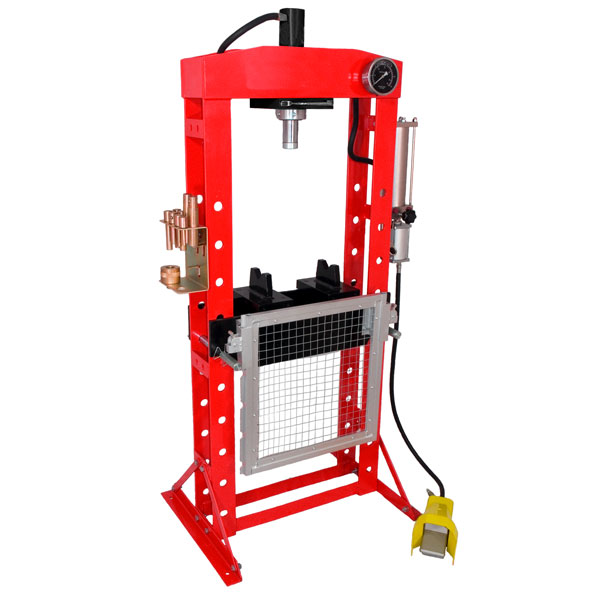

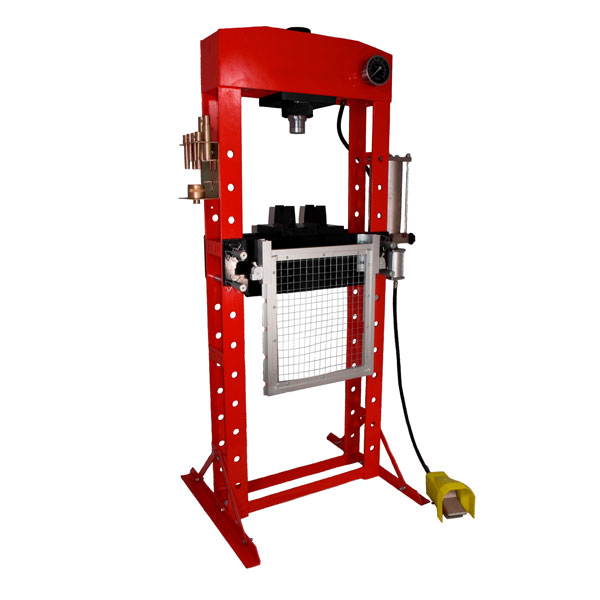

American Forge & Foundry AFF 854SD 50 Ton Super Duty Shop Press
