What is a spline drive adapter used for?

Spline drive adapters allow you to use sockets and other tools with a spline drive impact wrench or driver. This is especially useful when working on heavy machinery, trucks, or other applications where spline drives are common. For example, you might use a spline to square adapter to use standard impact sockets with a spline drive tool, or a spline drive extension to reach recessed fasteners. Always ensure the adapter is rated for the torque you intend to apply.

What are the different types of spline drive adapters available?

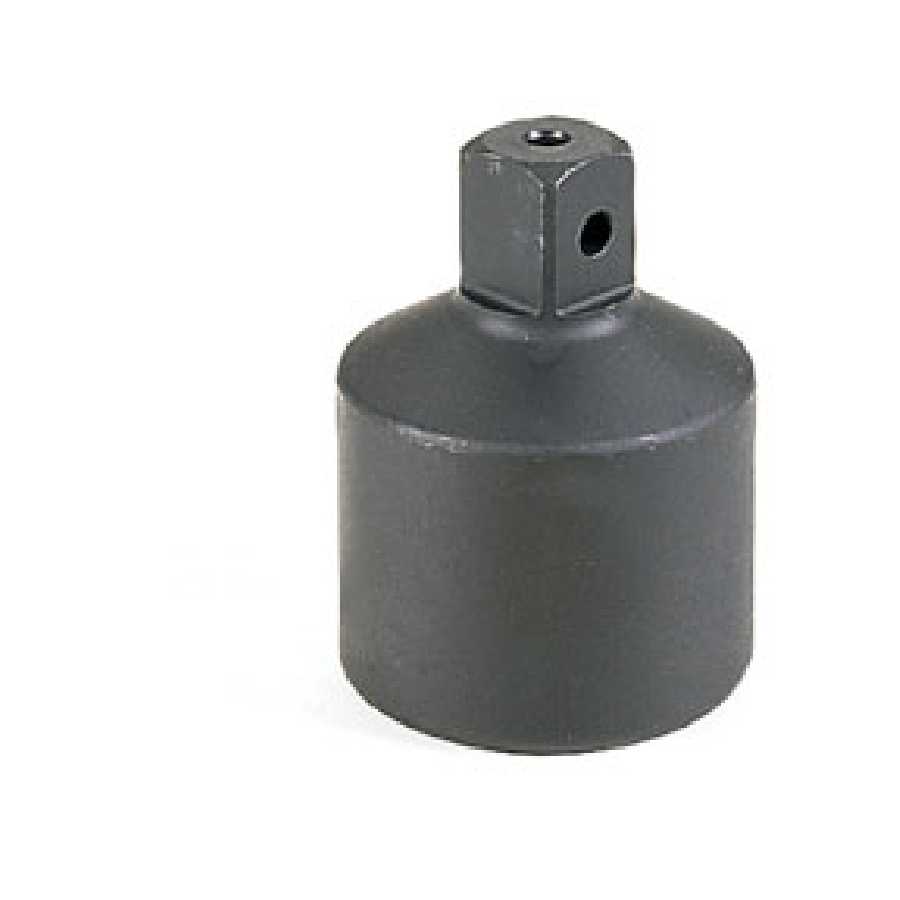

Spline drive adapters come in various configurations to suit different needs. Common types include spline-to-square drive adapters (allowing standard sockets to be used), spline drive extensions (for reaching recessed fasteners), and reducing or increasing adapters (adapting between different spline sizes). Some adapters, like those from Grey Pneumatic, may also feature a friction ball or pin hole for secure socket retention. Consider the specific application and the desired tool compatibility when selecting an adapter.

What is the difference between a #5 spline drive and other spline sizes?

The #5 spline drive is a specific size within the spline drive system, and refers to the dimensions of the spline. Different spline sizes are designed to handle different torque loads, with larger numbers typically indicating a larger, stronger spline. When selecting adapters, like a Sunex Tools #5 Spline to 3/4" adapter, it's crucial to match the adapter's spline size to both the drive tool and the socket or extension being used to ensure proper fit and prevent damage.

Are spline drive adapters safe to use with impact wrenches?

Yes, most spline drive adapters are designed for use with impact wrenches. High-quality adapters, such as those made by Grey Pneumatic and Sunex Tools, are typically constructed from durable materials like chrome-moly steel (CR-MO) to withstand the high torque and impact forces generated by impact wrenches. However, always verify that the adapter is specifically rated for impact use and that its torque capacity meets or exceeds the requirements of your application. Using an inappropriately rated adapter can lead to failure and potential injury.

How do I choose the right size spline drive adapter?

Selecting the correct spline drive adapter involves matching the spline size and drive size to your existing tools. First, identify the spline size of your impact wrench or driver. Then, determine the drive size of the socket or extension you want to use. Choose an adapter that bridges these two sizes. For example, if you have a #5 spline drive impact wrench and want to use a 3/4" drive socket, you would need a #5 spline to 3/4" adapter. Always double-check the compatibility before applying force.

What material should I look for in a spline drive adapter?

For durability and longevity, look for spline drive adapters made from high-strength materials like chrome-moly steel (CR-MO). CR-MO steel offers excellent resistance to impact and torque, making it ideal for use with impact wrenches and drivers. Avoid adapters made from weaker materials, as they may be prone to cracking or breaking under heavy loads. Brands like Sunex Tools and Grey Pneumatic often use CR-MO in their adapters for superior performance.

How do I prevent a spline drive adapter from getting stuck on a tool?

To prevent spline drive adapters from getting stuck, regularly inspect and clean both the adapter and the tools it connects to. Apply a thin layer of anti-seize lubricant to the spline and drive connections to reduce friction and prevent corrosion. Avoid over-tightening connections, and use the appropriate release mechanisms (such as friction balls or lock buttons, if equipped) when disassembling. If an adapter becomes stuck, try gently tapping it with a soft-faced hammer or using penetrating oil to loosen the connection; avoid excessive force, which could damage the adapter or tool.

Are there any warranty considerations when using spline drive adapters?

When using spline drive adapters, be aware that some manufacturers' warranties may not cover damage resulting from the use of reducing adapters or extensions. For instance, Grey Pneumatic explicitly states that reducing adapters are not covered under their warranty. Always review the warranty terms of your tools and adapters to understand the limitations and exclusions. Using the correct size and type of adapter, and avoiding excessive force, can help prevent damage and maintain warranty coverage.
