Why is proper transmission pump alignment so critical during reassembly?

Proper transmission pump alignment is crucial to prevent premature wear and failure of the pump and related components. Misalignment can cause binding, excessive heat, and uneven wear on the pump gears, seals, and housing. This leads to reduced pump efficiency, fluid leaks, and ultimately, transmission failure. Using alignment tools ensures the pump is correctly positioned within the transmission case, promoting smooth operation and extending the life of the transmission.

What types of tools are used to align transmission pumps, and when is each most appropriate?

Several types of tools aid in transmission pump alignment. Clamps or housings are used to hold the pump in the correct position while the transmission is assembled, preventing movement that could cause misalignment. Alignment shafts or cones, like the Front Cover Aligner T74P-6019-A from OTC Tools, are inserted through the pump and into the transmission case to center the pump. The best tool depends on the transmission type and the specific alignment requirements outlined in the service manual. Some transmissions also require specific dipsticks, like the Mopar Essential Tools Dipstick for LX NAG1 transmissions, to ensure proper fluid levels after reassembly, which is indirectly related to proper pump function.

How do I determine if my transmission pump is properly aligned after installation?

While a visual inspection can help, the most reliable method is to use the appropriate alignment tool during installation. After installation, check for smooth pump rotation. Any binding or resistance can indicate misalignment. Also, carefully inspect for leaks around the pump seal after the transmission is filled with fluid and running. If you suspect misalignment, disassemble and re-align the pump using the correct tools and procedures. Always consult the vehicle's service manual for specific instructions and torque specifications.

Are alignment tools transmission-specific, or are there universal options?

Many alignment tools are designed for specific transmission models or families due to the unique pump and case designs. However, some universal tools can be adapted to fit a range of transmissions. It's crucial to verify that the tool is compatible with your specific transmission before use. Using an incompatible tool can lead to incorrect alignment and potential damage. For example, Atec Trans-Tool offers a Front Pump Seal Installer GM compatible with several GM transmission types.

What are the potential consequences of neglecting to use proper transmission pump alignment tools?

Failing to use proper transmission pump alignment tools can lead to several serious problems. Misalignment can cause the pump to wear unevenly, resulting in reduced fluid pressure and flow. This can lead to slipping gears, overheating, and ultimately, complete transmission failure. Additionally, misalignment can damage the pump seal, causing fluid leaks and further reducing transmission performance. Investing in the correct alignment tools is a worthwhile investment to prevent costly repairs and ensure the longevity of the transmission.

What is the relationship between pump alignment and proper transmission fluid level, and how do dipsticks factor in?

While pump alignment primarily addresses the pump's mechanical positioning, it indirectly affects fluid level readings and overall transmission health. A properly aligned pump operates efficiently, maintaining correct fluid pressure and circulation. Incorrect fluid levels, whether too high or too low, can stress the pump and other components. Specialized dipsticks, like the Chrysler Transmission Dipstick from Assenmacher Specialty Tools or the Sprinter and Crossfire Transmission Dipstick, are essential for accurately measuring fluid levels after service to ensure optimal pump performance and longevity. Always refer to the vehicle's service manual for the correct fluid type and level specifications.

When replacing a front pump seal, what alignment considerations are important?

Replacing the front pump seal requires careful attention to alignment. The new seal must be installed squarely to prevent leaks and ensure proper pump function. Some tools, like the Atec Trans-Tool Front Pump Seal Installer for GM transmissions, are designed to both install the seal and aid in aligning the pump during reassembly. After installing the seal, always verify that the pump rotates freely and that there are no signs of binding or misalignment. Proper alignment at this stage is crucial for preventing premature seal failure and ensuring the overall reliability of the transmission.

Search

Manufacturers [more]

OTC Tools and Equipment | 307-041 | Transmission Fluid Pump Alignment Gauge T74P-77103-B

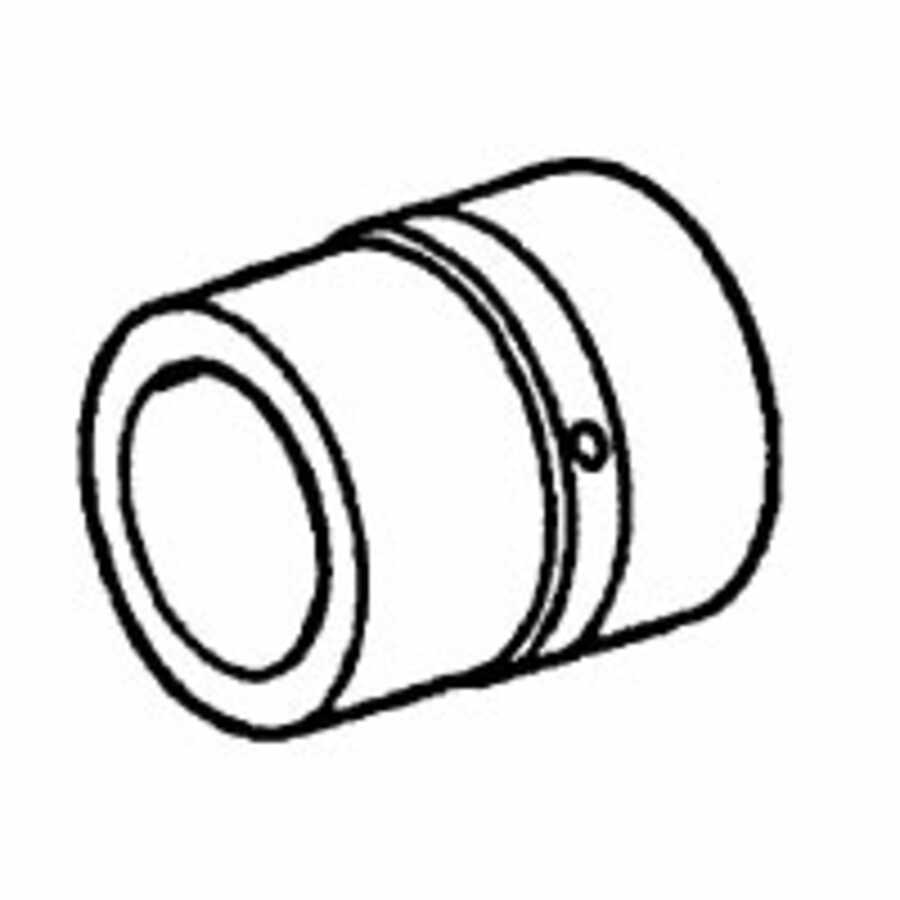

Name: Transmission Fluid Pump Alignment Gauge T74P-77103-B
Brand: OTC Tools and Equipment
SKU: 110410
Price: 270.3 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Model Number: {manufacturers_part_number}
Manufacturer: OTC Tools and Equipment
Product Type: Transmission Fluid Pump Alignment Gauge
Reference Standard: T74P-77103-B

Key Features

Engineered for precise alignment of automatic transmission fluid pumps during assembly.
Constructed from durable materials for reliable performance and extended tool lifespan in demanding workshop environments.
Designed to conform with specific original equipment alignment specifications, ensuring accurate pump positioning.
Facilitates consistent and correct installation of transmission fluid pumps.

Applications

Essential for professional automotive technicians performing automatic transmission rebuilds and repairs.
Used during the installation or reinstallation of transmission fluid pumps within automatic transmissions.
Applicable in automotive service centers and workshops specializing in transmission maintenance and overhaul.
Supports accurate component placement to prevent operational issues.

Benefits

Extends Transmission Lifespan: Ensures proper pump alignment, which significantly reduces premature wear on internal transmission components.
Prevents Costly Failures: Mitigates common issues such as fluid leaks, pump cavitation, and bearing wear that result from misalignment.
Ensures Optimal Performance: Guarantees the transmission fluid pump operates at peak efficiency, maintaining correct pressure and flow for smooth and reliable shifting.
Increases Installation Accuracy: Provides a dependable method for precise pump positioning, streamlining the assembly process and reducing errors.
Maintains OEM Standards: Helps technicians adhere to original equipment manufacturer specifications, ensuring that repairs meet factory quality and operational benchmarks.
