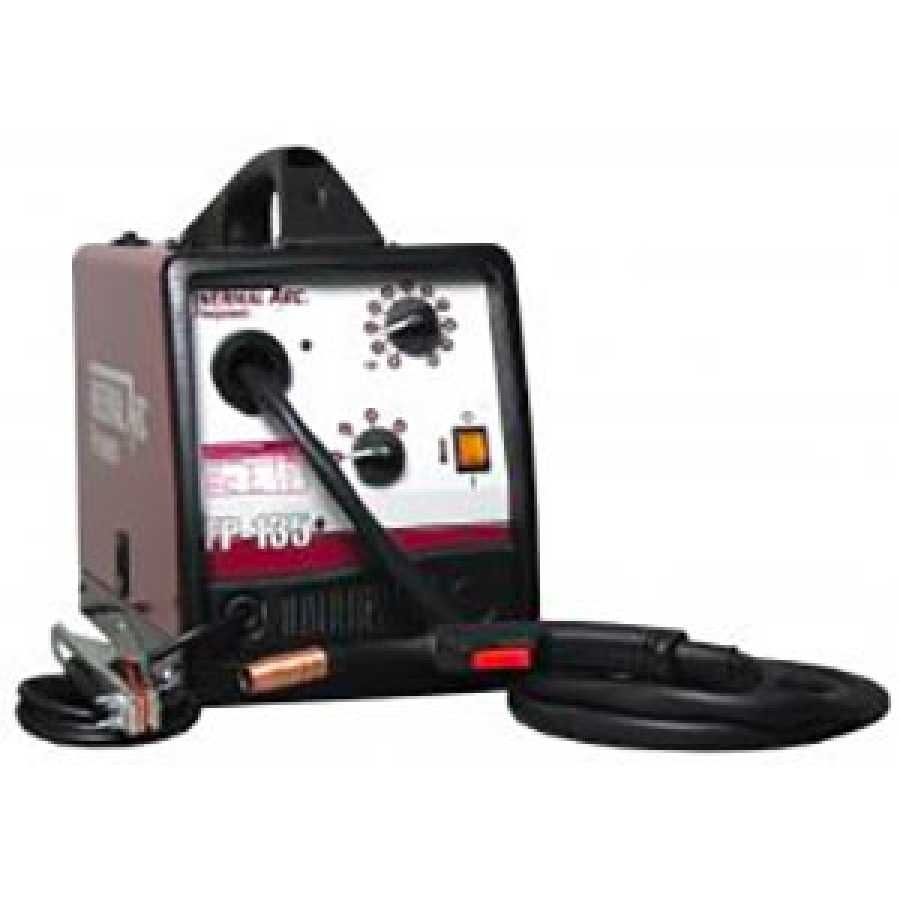

FP-135 MIG WELDING SYSTEM

The new portable FP 135 dual purpose wire welder delivers a very versatile and effective welding performance. With its simple operation and key set up chart even the novice can achieve high quality, professional results. This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard household outlet and delivers a high maximum output of 135 amps. The ready to weld system comes complete with Tweco gun, return cable & clamp, input power cord & plug, spool of flux cored wire and an operating manual. FP 135's high output and duty cycle makes this a great all round package. Optional cart also available.
Machine Specifications

Maximum output 135 Amp

Duty cycle @ 104°F 40% @ 90 Amp at 18V

Current range 20-135 Amp

Number of voltage settings 4

Maximum plate thickness 1/4" (6mm)

Wire diameter range .023" - .035" (0.6 - 0.9mm)

Dimensions (HxWxD) 12.75"x9.75"x17.35"(375x250x440mm)

Weight 56 lb (25.5kg)

Flow Gage Included, Voltage 120
